For customers in research,cell and gene therapy,vaccine production,and biobanking,the CryoVita CRF provides precise,repeatable freezing results that protect the sample from intracellular freezing.
For customers in research,cell and gene therapy,vaccine production,and biobanking,the CryoVita CRF provides precise,repeatable freezing results that protect the sample from intracellular freezing.
Liquid nitrogen flows via a metal hose connection,as a gas,into the freezing chamber.Predetermined cooling files are used to freeze samples prior to removal and storage at cryogenic temperatures.Data logging ensures continual monitoring of the entire process,including multiple temperature sensor set-points,actual values and the supply pressure of liquid nitrogen.
Dual solenoid valves design, one for working, the other for backup. When one valve fails, switch to the other valve through touch screen controller
Consistent temperature control and uniformity achieved via an air-handling system and liquid nitrogen injection device
Environmentally friendly insulating foam
Type 304 stainless steel with exterior powder-coat finish
|
Model |
CryoDynamic 18 |
CryoDynaic 34 |
CryoDynamic 50 |
|

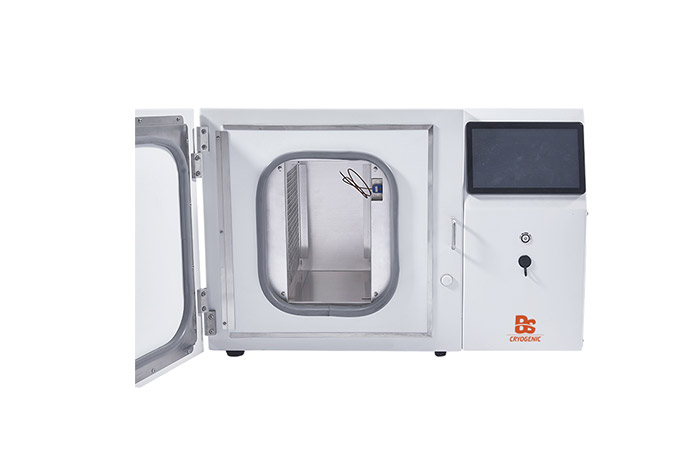

Door type |
Front open (upright) |
Front open (upright) |
Front open (upright) |
|
Capacity (Liter) |
18 |
34 |
50 |
|
2ml vial |
380 |
810 |
1190 |
|
5ml vial |
228 |
486 |
714 |
|
25/50ml blood bag |
30 |
60 |
90 |
|
250ml blood bag |
10 |
20 |
30 |
|
500ml blood bag |
10 |
20 |
30 |
|
1/2 cc straw |
450 |
900 |
1350 |
|
Interior dimensions W x D x H (mm) |
180 x 305 x 330 |
330 x 305 x 330 |
502 x 305 x 330 |
|
Exterior dimensionsW x D x H (mm) |
860 x 540 x 550 |
1006 x 540 x 550 |
1190 x 540 x 550 |
|
Net weight (kg) |
73 |
86 |
97 |
|
Heating power (W) |
2500 |
3000 |
3000 |
|
Power supply |
AC 220~240V, 50/60Hz |
||
|
Interior material |
SUS304 |
||
|
Door seal |
Yes |
||
|
Temperature range (°C) |
-190 ~ 50 |
||
|
Freezing rate (°C/min) |
0.1 ~ 99.9 |
||
|
Heating rate (°C/min) |
0.1 ~ 12 |
||
|
Temperature deviation (°C) |
<2 |
||
|
Controller |
Touch screen & microprocessor |
||
|
Freezing program storage |
Up to 20 (6 default programs) |
||
|
Data storage and USB port |
Yes |
||
|
Temperature display |
Chamber & sample |
||
|
Door-operation safety interlock |
Yes |
||
|
Refrigerant |
Liquid nitrogen |
||
|
Prefilter for liquid nitrogen |
Yes |
||
|
Liquid nitrogen source pressure |
14 ~ 22 PSI |
||
|
Pressure relief valve |
Yes, 125 PSI |
||
|
Freezing racks |
Optional |
||
|
Model |

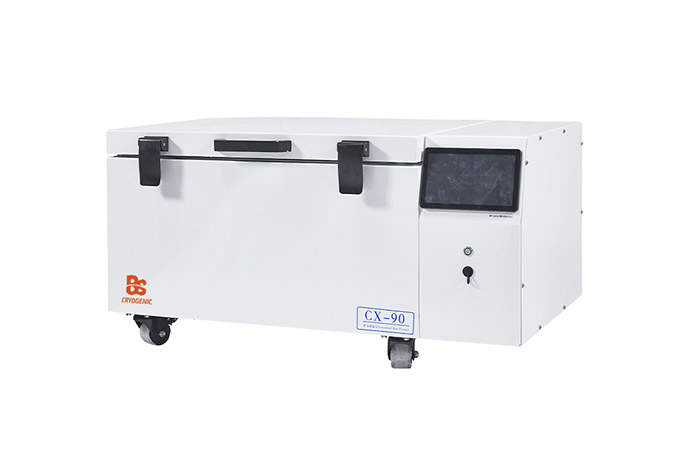

CryoDynamic 26H |
CryoDynamic 90H |
CryoDynamic 150H |
|

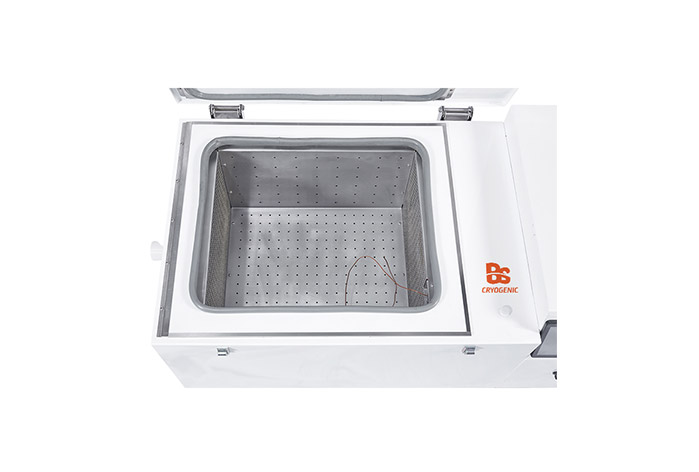

Door type |
Top open (horizontal) |
Top open (horizontal) |
Top open (horizontal) |
|
Capacity (Liter) |
26 |
90 |
150 |
|
1/2cc Straw |
900 |
2700 |
4500 |
|
1/4cc Straw |
630 |
1890 |
3150 |
|
Interior dimensions W x D x H (mm) |
476 × 184 × 340 |
476 × 552 × 340 |
476 × 767 × 380 |
|
Exterior dimensions W x D x H (mm) |
701× 769× 539 |
701× 1244 × 570 |
711× 1444 × 584 |
|
Net weight (kg) |
40 |
62 |
140 |
|
Heating power (W) |
2500 |
3000 |
3000 |
|
Power supply |
AC 220~240V, 50/60Hz |
||
|
Interior material |
SUS304 |
||
|
Door seal |
Yes |
||
|
Temperature range (°C) |
-180 ~ 50 |
||
|
Freezing rate (°C/min) |
0.1 ~ 50 |
||
|
Heating rate (°C/min) |
0.1 ~ 10 |
||
|
Temperature deviation (°C) |
<2 |
||
|
Controller |
Touch screen & microprocessor |
||
|
Freezing program storage |
Up to 20 (6 default programs) |
||
|
Data storage and USB port |
Yes |
||
|
Chamber temperature display |
Yes |
||
|
Sample sensor & temp display |
Yes |
||
|
Freezing step display |
Yes |
||
|
Running time display |
Yes |
||
|
Remaining time display |
Yes |
||
|
Door-operation safety interlock |
Yes |
||
|
Refrigerant |
Liquid nitrogen |
||
|
Prefilter for liquid nitrogen |
Yes |
||
|
Liquid nitrogen source pressure |
14 ~ 22 PSI |
||
|
Pressure relief valve |
Yes, 125 PSI |
||
|
Freezing racks |
Optional |
||
