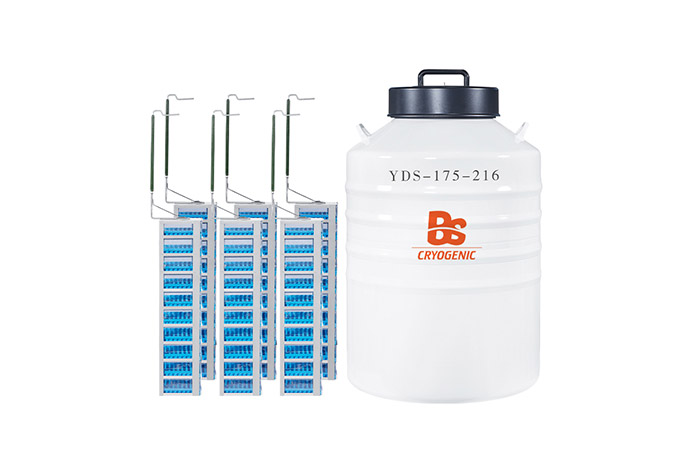

Large caliber square bucket-Henan Boss Liquid Nitrogen Container Co., Ltd.

01 Product Description

The large caliber square bucket series products combine the advantages of low liquid nitrogen consumption and a medium range of frozen storage capacity. The larger caliber and convenient extraction of frozen storage racks are convenient for situations where biological samples need to be stored for a long time and frequently extracted. The liquid nitrogen tanks of this series are light in weight and occupy less land, making them the preferred product for small sample libraries or early stage library construction.

Large caliber liquid nitrogen tanks are used for freezing tissues and cells in laboratories, as well as for assisted reproduction in hospitals. Can store a large number of 1.2ml/2ml/5ml frozen test tubes

02 Product Advantage

Large bottleneck opening
Large capacity and low liquid nitrogen consumption
5-year vacuum guarantee
Standard safety lock cover
Equipped with pulleys for easy transfer
High strength, low weight aluminum structure

03 Product Parameter

Model	YDS-10-125	YDS-35-125	YDS-47-127	YDS-50-125	YDS-65-216	YDS-120-216	YDS-175-216
Maximum Storage Capacity	1	6	6	6	4	4	6
Number of 1.2 & 2.0 ml vials 100/box	——	——	——	——	2000	4000	6000
Number of 1.2 & 2.0 ml vials 25/box	100	600	750	750	——	——	——
Boxes per Rack	4	4	5	5	5	10	10
LN2 Capacity L	10	30	47	50	61	121	175
Static Evaporation Rate* L/day	0.42	0.37	0.45	0.43	0.99	0.95	0.94
Working Volume L	24	97	105	115	62	127	186
Neck Opening (mm)	125	125	127	125	216	216	216
Overall Height (mm)	580	747	716	771	715	1050	1130
Outer Diameter (mm)	300	451	508	508	584	584	678
Weight Empty (kg)	6	17	21	22.5	28.5	43.5	56
