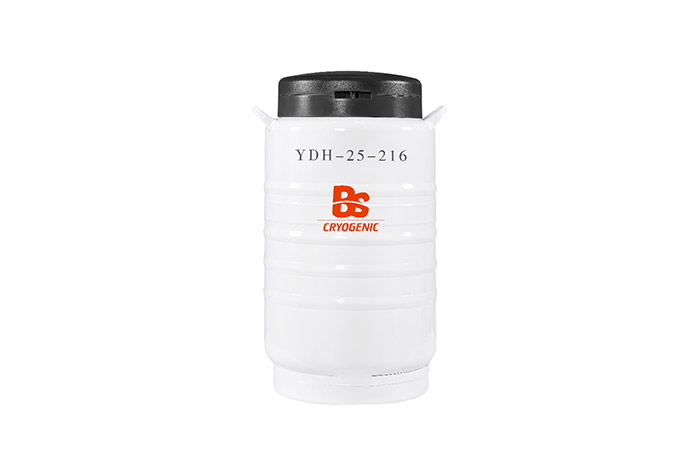

Air transport-Henan Boss Liquid Nitrogen Container Co., Ltd.

01 Product Description

The air transport series is suitable for transporting samples in deep low-temperature environments (gas-phase storage, temperature below -190 ℃), which can avoid the danger of liquid nitrogen release during transportation, especially suitable for short-term air transport such as airplanes. There is a liquid nitrogen adsorbent inside, which can absorb and store liquid nitrogen, and even if the container is poured, there will be no liquid nitrogen overflow; There is also a special stainless steel mesh screen to separate the storage space from the liquid nitrogen absorber, which can prevent the liquid nitrogen absorber material from mixing into the freezer tube. Mainly suitable for laboratory users and users who require short-term transportation of small amounts of samples.

02 Product Advantage

Gas phase low-temperature storage;
Rapid liquid nitrogen filling;
Durable and sturdy aluminum structure;
Lockable lid;
Five year vacuum warranty

03 Product Parameter

	YDH-3	YDH-4-125	YDH-6-80	YDH-10-125	YDH-20-216	YDH-25-216
No. of Canisters	1	1	1	1	1	1
No. of 1/2 cc Straws 1Level Bulk	1284	——	3624	——	——	——
No. of 1/4 cc Straws 1Level Bulk	2832	——	8460	——	——	——
Number of 1.2 & 2.0 ml vials	18	——	33	100	——	500
No. of blood bags stored 4R9951	——	4	——	——	——	——
No. of blood bags stored 4R9953	——	——	——	——	10	——
Liquid Nitrogen Capacity L	2	2	6	6	12	12
Static Evaporation Rate* L/day	0.14	0.52	0.22	0.43	0.84	0.84
Static Holding Time Days	14	4	27	14	14	14
Empty Weight(kg)	5.7	6.5	7	7.8	11	12
Weight Full liquid (kg)	7.3	8.1	11.9	12.7	20.7	21.7
Neck Opening	50	125	80	125	216	216
Overall Height	580	580	630	625	700	700
Outer Diameter	224	224	300	300	396	396
Canister Height	276	——	276	276	——	——
Canister Diameter	38	——	70	97	——	——
	——	——	——	5*5	——	10*10
	——	——	——	4	——	5
